Reluctor Ring Fitting Instructions

This page provides instructions for magnetic rings that require a FITTING TOOL.

Click Here For Other Magnetic Rings | Click Here For Toothed Rings | Click Here For Slotted Rings

  1. Dismount the CV joint from the car and remove the old reluctor rings from the unit by prizing them off with a screwdriver, taking care not to damage the unit.
  2. Clean the joint using steel wool to remove all the corrosion that is on it.

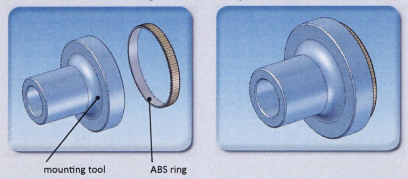

  3. Put the new ABS ring into the mounting tool

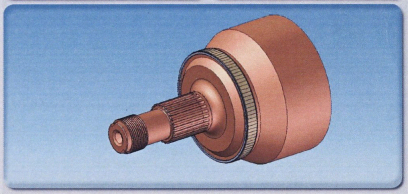

  4. Drop the new reluctor ring and tool into place.

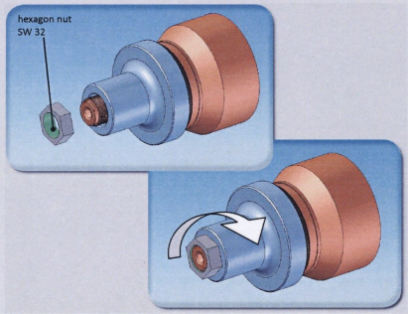

  5. Put the hexagon nut in place and slowly turn in a clockwise direction until the ring has been pushed all of the way home.
  6. Unscrew the hexagon nut and remove the fitting tool ready to refit the CV joint to the car.
